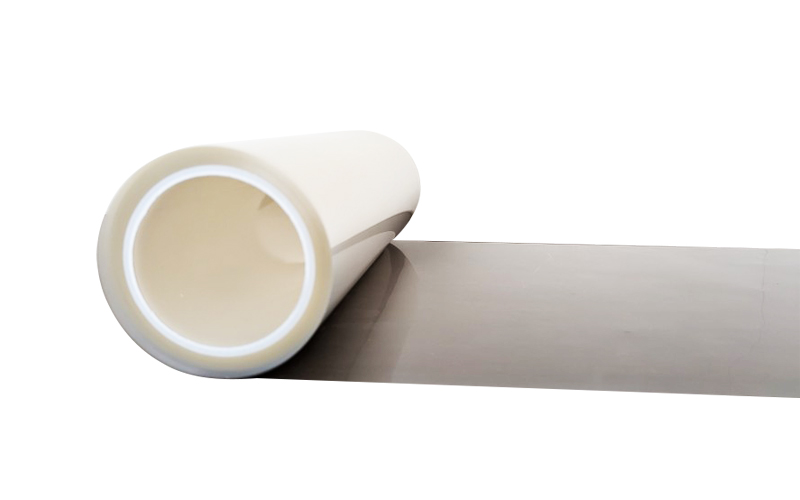

Anti-Static Film
Description
The anti-static film is PET films using anti-static adhesive. It helps to prevent static electricity from accumulating to cause sparks which in turn damage the electronic products. Because of its low adhesion, it can be laminated with plain and smooth substrates. Moreover, there is no residue when you peel off and no static occurred.
Features
- Stable Electric Surface Resistance
- High Transparency，Shiny Surface
- No Residue

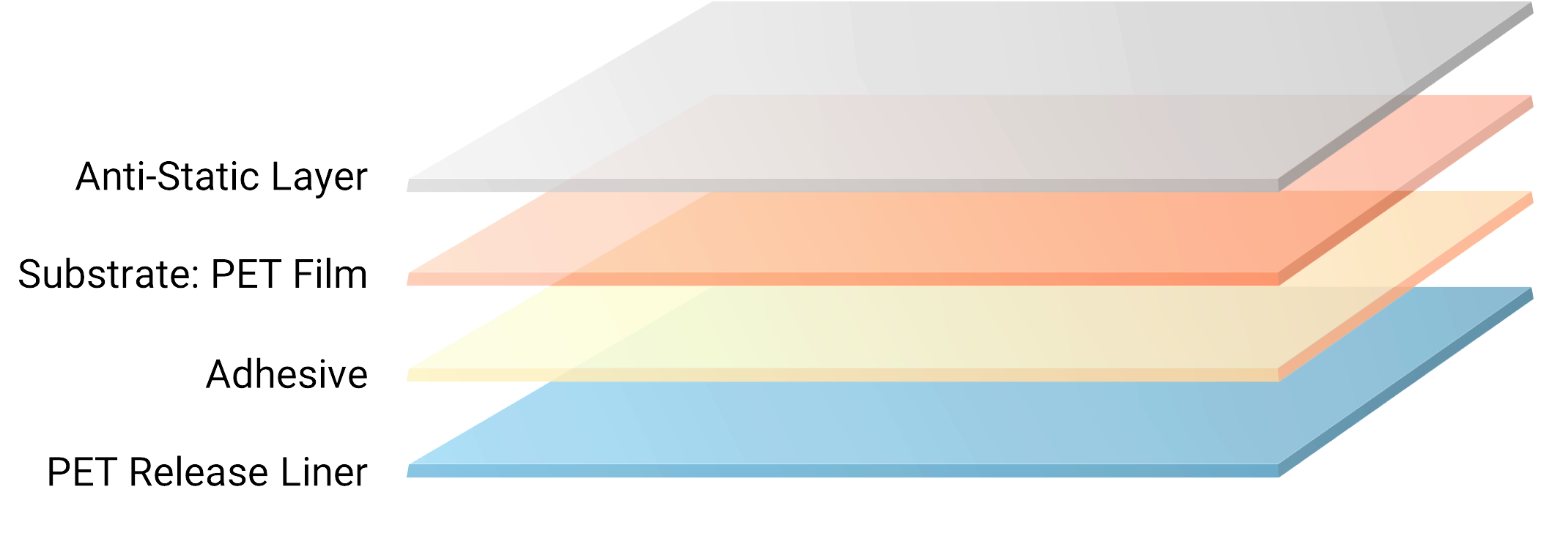

Structure
| Anti-static | - |
|---|---|
| PET | 100μm |
| Silicone Adhesive | - |
| Release PET Film | 25μm |
Applications

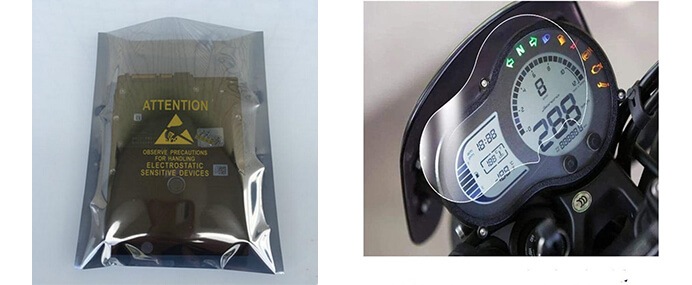

Packaging for electronic products, carrier tapes, speedometers…
Technical Data
| Items | Unit | Value | Test Method |
|---|---|---|---|
| Total thickness | µm | 110±5 | ASTM E252 |
| Substrate thickness | µm | 100±3 | ASTM E252 |
| Adhesive thickness | µm | 25±3 | ASTM E252 |
| Release Film thickness | µm | 25±2 | - |
| Peel Adhesion 180° 24hr | g/25mm | 5±2 | JIS Z0237:2009 to 25u PET (no corona side) |
| Surface Resistivity | Ω | 105 ~ 1011 | ASTM D257 |
| Ageing Test | Easy to peel，No residue | - |
Note：
The product specification above is for reference only. Its content is subject to change.
